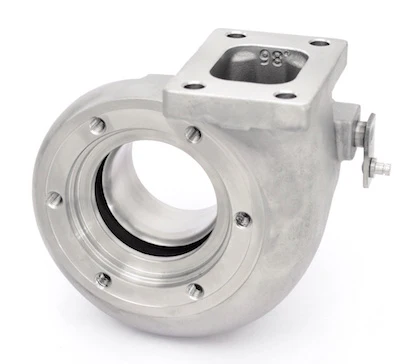

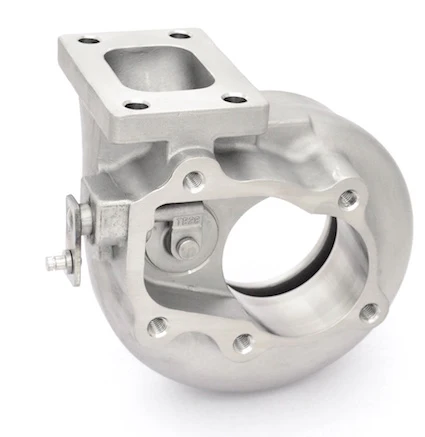

T25 Inlet, Internally Gated, Stainless Steel, & .86 A/R Turbine Housing for GT30/GTX30

PRODUCT DESCRIPTION:

Stainless Steel, T25 inlet, internally gated, 5 bolt outlet, and .86 A/R turbine housing for Garrett GTX30 series and Garrett GT30 series (standard 60mm inducer / 55mm exducer turbine wheel) turbochargers.

The perfect upgrade solution for existing T25 inlet Garrett GT28/GTX28 series turbo setups to a Garrett GT30/GTX30 series turbo without replacing the manifold!

.64 A/R version available as  ATP-HSG-364.

PRODUCT SPECIFICATIONS:

T25 inlet flange

Internally gated

5 bolt GT28 style outlet

.86 A/R

Stainless Steel material

COMPATIBLE GARRETT TURBOCHARGERS:

GTX3067R

GT3071R, GTX3071R, GEN2 GTX3071R

GT3076R, GTX3076R, GEN2 GTX3076R

GT3082R

INSTALLATION COMPONENTS:

T25 Inlet Gasket: GRT-GSK-004

T25 Inlet Flange (For Manifold): ATP-FLS-037

Turbine Housing to CHRA Mount Kit:  ATP-FST-039

Outlet 5 Bolt Gasket:  ATP-GSK-016

Outlet 5 Bolt Flange (For Down-pipe): ATP-FLS-088

Outlet 5 Bolt to 3" V-Band Adapter:  ATP-FLS-023B

Outlet Fasteners: (Studs) and (Lock Nuts)
