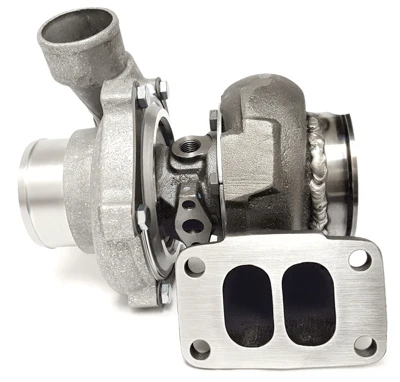

GEN2 Garrett GTX3071R Turbo w/ Divided 1.06 A/R T3 Turbine Housing w/3" VBAND Exit GRT-TBO-784
HomeStore

GEN2 Garrett GTX3071R Turbo w/ Divided 1.06 A/R T3 Turbine Housing w/3" VBAND Exit GRT-TBO-784

GEN2 Garrett GTX3071R Turbo w/ Divided 1.06 A/R T3 Turbine Housing w/3" VBAND Exit GRT-TBO-784

$709.12

Original: $2,363.73

-70%
GEN2 Garrett GTX3071R Turbo w/ Divided 1.06 A/R T3 Turbine Housing w/3" VBAND Exit GRT-TBO-784—

$2,363.73

$709.12

The Story

PRODUCT SPECIFICATIONS:
  • Compressor Wheel Inducer: 54mm
  • Compressor Wheel Exducer: 71mm
  • Compressor Wheel Trim: 58
  • Compressor Housing A/R: 0.60
  • Turbine Wheel Inducer: 60mm
  • Turbine Wheel Exducer: 55mm
  • Turbine Wheel Trim: 84

    •

    INSTALLATION HARDWARE:

  • Coolant - Water Options (*Please call for assistance*)
  • Oil feed fitting with .035" restrictor: OIL-021
  • Oil drain flange: FLA-010
  • Oil drain gasket: GSK-008
  • 8mm x 1.25 (thread pitch) Stud: FST-030
  • 8mm x 1.25 (thread pitch) Locking Head Nut: FST-031

  • T3 Divided Inlet Flange (for Turbo Manifold): FLS-068
  • T3 Divided Inlet Gasket: GSK-015
  • 3" GT V-band Outlet Flange w/81mm protruded lip (for Downpipe): FLS-246
  • Matching V-Band Outlet Clamp: CLA-048


    • NOTE: Alternate coolant and oil fittings and flanges are available.


    COMPRESSOR & TURBINE MAPS:

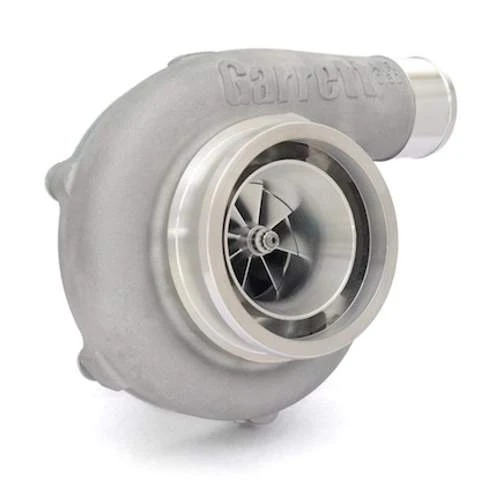

    GEN2 Garrett GTX3071R Turbo w/ Divided 1.06 A/R T3 Turbine Housing w/3" VBAND Exit GRT-TBO-784 - Image 2

    Details & Craftsmanship

    Every detail has been carefully considered to bring you the perfect product.

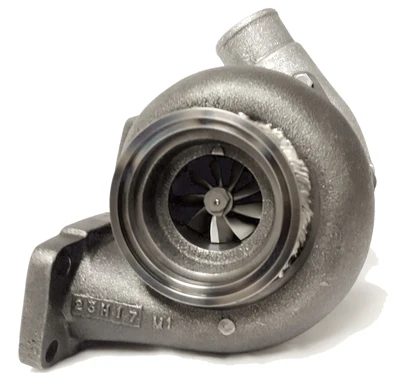

    GEN2 Garrett GTX3071R Turbo w/ Divided 1.06 A/R T3 Turbine Housing w/3" VBAND Exit GRT-TBO-784 - Image 3

    Details & Craftsmanship

    Every detail has been carefully considered to bring you the perfect product.

    Description

    PRODUCT SPECIFICATIONS:
  • Compressor Wheel Inducer: 54mm
  • Compressor Wheel Exducer: 71mm
  • Compressor Wheel Trim: 58
  • Compressor Housing A/R: 0.60
  • Turbine Wheel Inducer: 60mm
  • Turbine Wheel Exducer: 55mm
  • Turbine Wheel Trim: 84

    •

    INSTALLATION HARDWARE:

  • Coolant - Water Options (*Please call for assistance*)
  • Oil feed fitting with .035" restrictor: OIL-021
  • Oil drain flange: FLA-010
  • Oil drain gasket: GSK-008
  • 8mm x 1.25 (thread pitch) Stud: FST-030
  • 8mm x 1.25 (thread pitch) Locking Head Nut: FST-031

  • T3 Divided Inlet Flange (for Turbo Manifold): FLS-068
  • T3 Divided Inlet Gasket: GSK-015
  • 3" GT V-band Outlet Flange w/81mm protruded lip (for Downpipe): FLS-246
  • Matching V-Band Outlet Clamp: CLA-048


    • NOTE: Alternate coolant and oil fittings and flanges are available.


    COMPRESSOR & TURBINE MAPS:
