Garrett GTX3584RS (with T3 Inlet & 4 Bolt Outlet Turbine Housing) GRT-TBO-596

PRODUCT DESCRIPTION:

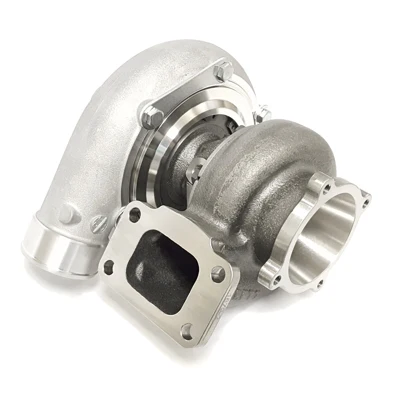

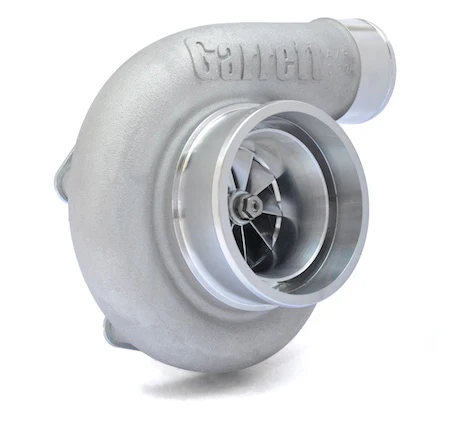

Garrett GTX3584RS dual ball bearing turbocharger, including hose bead compressor outlet housing; and a Garrett T3 Inlet, and 3" GT 4 Bolt outlet turbine housing.

The Garrett GTX3584RS combines an advanced aerodynamic GEN2 billet compressor wheel and ultra high flow "RS" turbine wheel within compact design housings to support 1,000HP!

** Hose Bead Outlet Compressor Housing.

PRODUCT FEATURES:

Advanced aerodynamics Garrett GTX GEN2 billet aluminum compressor wheel

Ultra high flow "RS" blade profile turbine wheel

Dual ball bearing CHRA rotating assembly

Compact package capable of 1,000HP

PRODUCT SPECIFICATIONS:

Compressor Wheel Inducer: 67mm

Compressor Wheel Exducer: 84mm

Compressor Wheel Trim: 64

Compressor Housing A/R: 0.72

Compressor Housing Inlet: 4 inch diameter

Compressor Housing Outlet: 2.5 inch diameter

Turbine Wheel Inducer: 68mm

Turbine Wheel Exducer: 62mm

Turbine Wheel Trim: 84

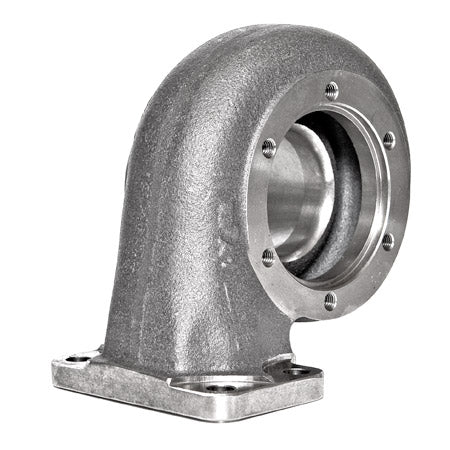

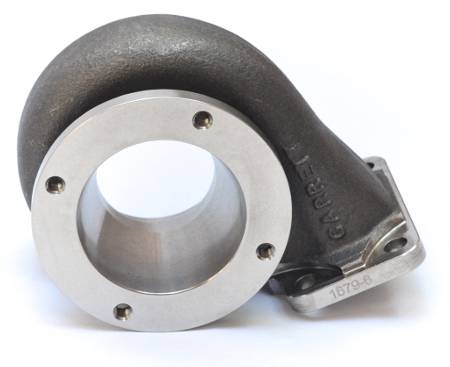

TURBINE HOUSING SPECIFICATIONS:

T3 Inlet

3 Inch GT 4 Bolt Outlet

.82 or 1.06 A/R



INSTALLATION HARDWARE:

Coolant - Water Options (*Please call for assistance*)

Oil feed fitting with .035" restrictor: OIL-021

Oil drain flange: FLA-010

Oil drain gasket: GSK-008

8mm x 1.25 (thread pitch) Stud: FST-030

8mm x 1.25 (thread pitch) Locking Head Nut: FST-031

NOTE: Alternate coolant and oil fittings and flanges are available.


TURBINE HOUSING INSTALLATION COMPONENTS:

T3 Inlet Flange (for Turbo Manifold): FLS-038

T3 Inlet Gasket: GSK-005

Discharge Flange GT 4 Bolt 3" (Stainless Steel): FLS-085

Gasket, Downpipe (Turbine outlet) Gasket, "GT 4 Bolt 3" opening: GSK-018

8mm x 1.25 (thread pitch) Stud: FST-030

8mm x 1.25 (thread pitch) Locking Head Nut: FST-031

APPLICATION NOTES:

The Garrett GTX3584RS includes a new blade profile "RS" turbine wheel and is NOT compatible with turbine housings designed for Garrett GT35, GTX35, and GTX35 GEN2 series models.

COMPRESSOR & TURBINE MAPS:
